What Are the Main Types of Anesthesia Breathing Circuits?

The anesthesia breathing circuit functions as the primary interface between the anesthesia machine and the patient. It directly controls gas exchange, volatile anesthetic delivery, and patient safety. Standardizing these respiratory consumables across a hospital network presents a complex operational challenge. Procurement and clinical directors must balance airflow resistance and mechanical dead space with strict infection control mandates. They also face mounting pressure to address environmental sustainability and supply chain reliability. This guide deconstructs the primary classifications of breathing circuits used in modern operating rooms. We evaluate component material standards and technical specifications. You will receive an evidence-based framework for shortlisting and procuring these devices. Understanding the exact mechanical differences between circuit types ensures safer patient outcomes and more efficient inventory management.

• Classification Dictates Function: The choice between rebreathing (circle) and non-rebreathing (Mapleson) systems fundamentally alters fresh gas flow requirements, heat/moisture retention, and volatile anesthetic consumption.

• The 4-Tier Spectrum: Understanding the traditional classifications—open, semi-open, semi-closed, and closed—is essential for matching the degree of rebreathing to specific clinical requirements.

• Infection Control Drives Adoption: The industry standard has heavily shifted toward the disposable anesthesia breathing circuit to mitigate cross-contamination risks and eliminate the hidden costs of reprocessing.

• Material Safety is Non-Negotiable: Modern compliance requires strict adherence to biocompatibility, necessitating components like a latex-free anesthesia breathing bag to prevent severe anaphylactic events.

• Operational Lifecycle Extends Beyond Unit Price: Evaluating anesthesia supplies requires factoring in storage footprint, waste management, and the clinical risks of equipment incompatibility.

Core Classifications of an Anesthesia Breathing Circuit

The primary success criterion for any breathing circuit is delivering accurate gas mixtures to the patient. It must efficiently eliminate carbon dioxide without imposing excessive work of breathing. Clinical staff categorize these systems based on how they handle exhaled gases. The overarching categories include open, semi-open, semi-closed, and closed systems. The degree of rebreathing and the required fresh gas flow dictate each classification.

Understanding this traditional four-tier spectrum helps clinical teams match equipment to specific surgical requirements. We can break down the spectrum into four distinct operational modes:

1. Open Systems: These provide no rebreathing and require no valves. They offer poor control over anesthetic depth and release waste gas directly into the room.

2. Semi-Open Systems: These allow minimal rebreathing. They rely on high fresh gas flows to flush exhaled carbon dioxide out of the tubing.

3. Semi-Closed Systems: These permit partial rebreathing. They utilize chemical absorbers to neutralize carbon dioxide while venting excess gas through a pressure relief valve.

4. Closed Systems: These feature complete rebreathing of exhaled gases. The adjustable pressure-limiting valve remains closed. The machine only delivers enough fresh gas to replace patient oxygen consumption and anesthetic uptake.

Rebreathing Systems (Circle Systems)

Modern operating rooms rely heavily on semi-closed and closed systems, commonly known as circle systems. These setups dominate adult anesthesia practice. They conserve heat, retain airway moisture, and drastically reduce the consumption of expensive volatile anesthetics. A circle system routes exhaled gas through a chemical absorbent before returning it to the patient.

Visual and functional differentiators make circle systems easy to identify. The presence of carbon dioxide absorbers and unidirectional inspiratory and expiratory valves serve as the definitive markers. These components ensure gas flows in a single direction. This prevents the patient from inhaling carbon dioxide-rich dead space gas. The standard circle setup includes corrugated tubing, a Y-piece connector, an adjustable pressure-limiting (APL) valve, and a reservoir bag.

Clinical trade-offs exist within circle systems. They offer high efficiency in conserving patient heat and moisture. They lower atmospheric pollution in the operating room. However, they introduce increased mechanical complexity. The unidirectional valves and chemical absorbent canisters add resistance to the patient's breathing effort. This resistance makes traditional circle systems less ideal for very small pediatric patients who lack the respiratory muscle strength to overcome the mechanical drag.

Furthermore, the chemical reaction inside the carbon dioxide absorber generates heat and moisture. When using soda lime, the reaction with volatile anesthetics like sevoflurane can produce Compound A, a potentially nephrotoxic byproduct, especially at very low fresh gas flows. Clinicians must monitor absorbent exhaustion closely. Exhausted granules change color, indicating the need for immediate replacement to prevent hypercapnia.

Non-Rebreathing Systems (Mapleson Classifications)

Non-rebreathing systems encompass open and semi-open classifications. The medical community categorizes these as Mapleson systems, ranging from Mapleson A through F. The Bain circuit, a coaxial modification of the Mapleson D, remains one of the most recognized variants. These systems lack unidirectional valves and do not use carbon dioxide absorbers.

Instead of chemical absorption, Mapleson systems rely entirely on high fresh gas flows to flush carbon dioxide from the tubing during the expiratory pause. The specific arrangement of the fresh gas inlet, the APL valve, and the reservoir bag determines the circuit's efficiency. Mapleson A systems excel during spontaneous ventilation. Mapleson D and Bain circuits perform better during controlled mechanical ventilation.

The clinical trade-offs for non-rebreathing systems center on their physical footprint and gas consumption. They feature low airflow resistance and a lightweight design. This makes them highly suitable for pediatric anesthesia, where minimizing dead space and resistance is paramount. Conversely, they require significantly higher fresh gas flows. This increases the consumption of medical gases, accelerates the loss of patient body heat, and dries out the respiratory tract due to the lack of moisture retention.

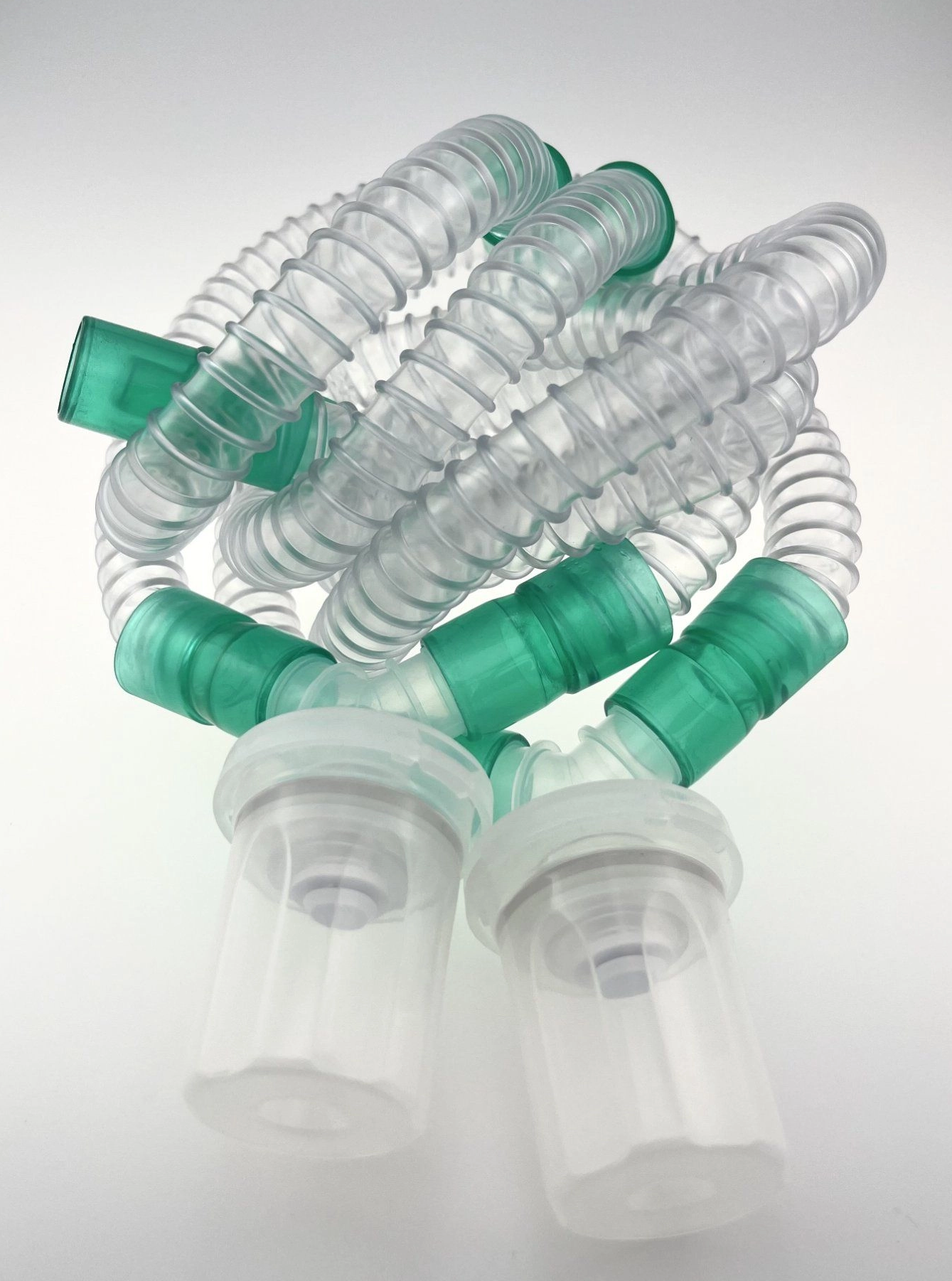

Technical Components and Material Specifications

The individual components of a circuit dictate its overall quality, safety, and usability. Procurement teams must evaluate the specific materials and architectural designs of these parts. Inferior components lead to gas leaks, tubing kinks, and potential patient harm. Breaking down the circuit into its core elements reveals the technical specifications required for modern clinical practice.

Tubing Architecture and Visual Identification

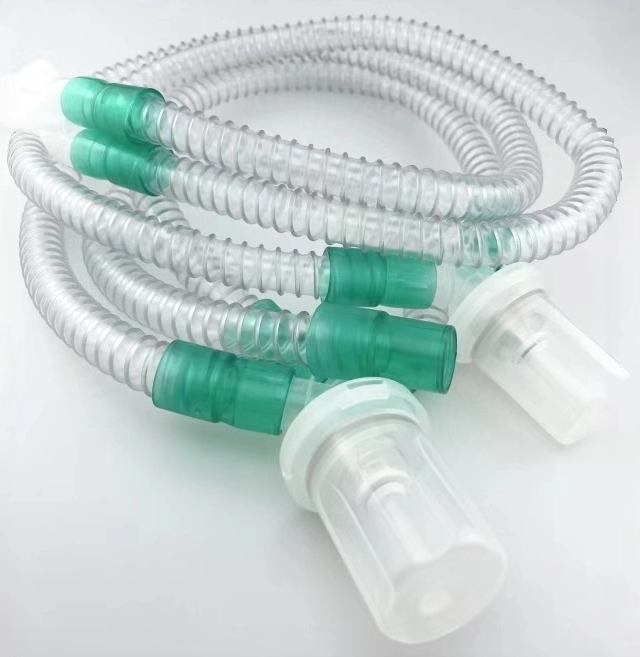

Tubing design directly impacts compliance, resistance, and dead space. Manufacturers primarily utilize three architectural styles: corrugated, coaxial, and smoothbore. Corrugated tubing offers excellent flexibility and resists kinking when bent around surgical equipment. However, the internal ridges create turbulent airflow, which slightly increases breathing resistance. Smoothbore tubing features a smooth internal surface with an external spiral reinforcement. This design promotes laminar airflow, reducing resistance and preventing the accumulation of condensation.

Coaxial designs, such as the Bain circuit, feature a tube-within-a-tube architecture. The inner tube delivers fresh gas, while the outer corrugated tube carries exhaled gas. This configuration warms the incoming fresh gas using the thermal energy of the exhaled breath. While efficient, coaxial circuits require rigorous pre-use testing. If the inner tube disconnects or ruptures, the entire outer tube becomes dead space, leading to severe hypercapnia.

Visual differentiation plays a vital role in patient safety. Operating room staff must quickly identify circuit types during rapid setups or emergency changeovers. Manufacturers often use color-coded tubing or distinct physical profiles to separate adult circuits from pediatric variants. Expanding tubing designs allow clinicians to adjust the length of the circuit. This minimizes dead space and reduces the physical clutter around the anesthesia workstation.

When evaluating tubing materials, procurement teams typically encounter polyethylene and ethylene vinyl acetate (EVA). Polyethylene provides a lightweight, cost-effective solution for standard corrugated tubes. EVA offers superior flexibility and clarity, making it ideal for smoothbore and expandable designs. The material choice directly affects the circuit's compliance—the amount the tubing expands under pressure. High compliance means a portion of the tidal volume expands the tubing rather than entering the patient's lungs, requiring the clinician to adjust ventilator settings to compensate.

Reservoir Bags and Allergy Mitigation

The reservoir bag serves multiple critical functions during anesthesia delivery. It acts as a visual monitor of spontaneous respiration, allowing the anesthesiologist to assess respiratory rate and depth. It provides a flexible reservoir of gas to meet peak inspiratory flow demands that exceed the fresh gas flow rate. Furthermore, it serves as the primary tool for delivering manual positive pressure ventilation during induction or emergencies.

Material safety regarding reservoir bags is heavily regulated. Historically, manufacturers produced these bags from natural rubber latex to achieve high elasticity. Today, standardizing on a latex-free anesthesia breathing bag is a clinical necessity. Repeated exposure to latex proteins sensitizes healthcare workers and patients, leading to severe, life-threatening anaphylactic events in the operating room. Modern synthetic elastomers, such as neoprene or specialized silicone blends, provide the necessary compliance and tactile feedback without the associated allergy liabilities.

Sizing the reservoir bag correctly ensures optimal ventilation. A bag that is too small will not hold enough volume for a full inspiration, while a bag that is too large makes it difficult to monitor spontaneous breathing or feel lung compliance during manual ventilation.

• 0.5 Liter: Neonates and infants under 10 kg.

• 1.0 Liter: Small children between 10 kg and 20 kg.

• 2.0 Liter: Older children and small adults between 20 kg and 50 kg.

• 3.0 Liter: Standard adult size for patients over 50 kg.

Patient Interfaces and Mask Integration

The patient interface connects the breathing circuit to the patient's airway. Face masks require an effective seal and an anatomical fit to prevent gas leaks and ensure adequate ventilation. A poor seal leads to operating room pollution and inadequate patient oxygenation. The cushion of the mask must conform to various facial structures without applying excessive pressure to the eyes or facial nerves.

Integrating a transparent PVC anesthesia mask offers distinct clinical advantages. The transparent dome allows continuous visual monitoring of the patient's mouth and nose. Clinicians can immediately detect cyanosis, condensation indicating exhalation, or the presence of regurgitated gastric contents. Furthermore, medical-grade PVC is highly cost-effective, making it the ideal material for single-use, disposable setups.

The inclusion of a check valve allows staff to adjust the cushion inflation, customizing the fit for challenging airway anatomies. A color-coded hook ring facilitates the attachment of a head strap, securing the mask during prolonged pre-oxygenation or non-invasive ventilation. Mask sizing ranges from size 0 for neonates up to size 6 for large adults. Stocking a complete range of sizes prevents delays during induction.

Disposable vs. Reusable: Evaluating Infection Control and Cost

The debate between single-use and multi-use respiratory equipment has largely concluded in favor of single-use items. Procurement strategies have shifted dramatically to prioritize infection control and operational efficiency. Analyzing the evaluation dimensions between disposable and reusable circuits reveals why modern healthcare facilities mandate single-use respiratory consumables.

The Case for the Disposable Anesthesia Breathing Circuit

Infection control benefits drive the adoption of disposable systems. The respiratory tract harbors numerous pathogens. Reusable corrugated tubing traps moisture, creating an ideal breeding ground for bacteria and viruses. Even with the use of high-efficiency particulate air (HEPA) filters, the risk of cross-transmission remains a significant liability. The post-COVID-19 clinical landscape demands the elimination of bacterial and viral cross-transmission vectors. Single-use circuits guarantee a sterile airway interface for every patient.

Beyond infection control, disposable circuits eliminate the labor-intensive processes associated with reprocessing. Reusable circuits require thermal disinfection, chemical sterilization, and rigorous drying protocols. These processes degrade the materials over time, leading to micro-cracks and gas leaks. Facilities using reusable circuits must fund sterilization validation procedures, purchase specialized cleaning chemicals, and allocate significant staff hours to decontamination. Disposables remove these operational burdens entirely.

Inventory Management of Anesthesia Supplies

Transitioning to disposable consumables requires careful inventory management. Bulk disposable circuits demand significant storage space within the facility. Procurement teams must optimize their supply chain to ensure a continuous flow of materials without overwhelming the hospital's central supply rooms. Just-in-time delivery models and vendor-managed inventory systems help mitigate storage footprint challenges.

Waste management considerations also play a role in procurement decisions. The environmental impact of single-use plastics is a valid concern for healthcare administrators. However, modern manufacturers are actively optimizing PVC and plastic weights to reduce ecological footprints. Advanced manufacturing techniques produce thinner, stronger tubing that requires less raw material. Facilities can also implement specialized recycling programs for clean, non-contaminated plastic waste generated before the patient enters the operating room.

To manage inventory effectively, clinical directors should establish clear par levels based on historical surgical volume.

1. Analyze the daily average of general anesthesia cases requiring a full circle system.

2. Calculate the weekly consumption rate of specialized pediatric non-rebreathing circuits.

3. Set a minimum safety stock threshold of 14 days to buffer against unexpected shipping delays.

4. Rotate stock based on expiration dates to prevent material degradation of the synthetic elastomers.

Decision Framework: Selecting the Right Circuit for Your Facility

Clinical committees require a structured approach to evaluate vendors and select appropriate anesthesia supplies. The decision framework must account for patient demographics, surgical disciplines, and equipment compatibility. A one-size-fits-all approach compromises patient safety and wastes resources.

Matching Circuit Type to Patient Demographics and Disciplines

Patient size dictates circuit selection. Adult and pediatric patients have vastly different respiratory mechanics. Adult circuits typically feature 22 mm diameter tubing to accommodate large tidal volumes with minimal airflow resistance. Pediatric circuits utilize 15 mm or 10 mm tubing to minimize mechanical dead space. Excessive dead space in a pediatric patient leads to rapid carbon dioxide accumulation and respiratory acidosis.

Weight-based circuit selection criteria guide clinical staff. Generally, patients weighing over 20-25 kg tolerate adult circle systems. Patients under this threshold require pediatric circle systems or specific non-rebreathing circuits. Managing tidal volumes, dead space, and flow resistance remains the primary objective.

Cross-disciplinary use cases further influence procurement. For example, veterinary procurement often mirrors human pediatric requirements. Veterinary anesthesiologists prefer specific non-rebreathing circuits for smaller animal patients. These circuits provide minimal resistance, ensuring smaller animals can ventilate spontaneously without exhaustion.

Standardization and Compatibility

Interoperability is crucial for patient safety. Anesthesia breathing circuits must connect seamlessly to anesthesia machines, ventilators, and manual resuscitators. Ensuring adherence to ISO standard connectors guarantees this compatibility. ISO 5356-1 specifies standard 22 mm and 15 mm conical connectors for respiratory equipment. The standard dictates a specific 1:40 taper for these connectors. This precise taper ensures a friction fit that remains secure under pressure but allows intentional disconnection without excessive force. Mandating ISO compliance prevents misconnections and ensures a secure, leak-free seal between components.

Evaluating the availability of custom circuit kits streamlines operating room turnover times. Vendors offer pre-assembled kits that include the breathing circuit, heat and moisture exchanging filters (HMEFs), gas sampling lines, and face masks. These all-in-one packages reduce the time staff spend gathering individual components. Faster turnover times increase operating room throughput and improve overall surgical efficiency.

Implementation Risks and Mitigation Strategies

Adopting new circuit vendors or switching circuit types introduces friction points within a medical facility. Clinical leaders must anticipate these implementation realities and deploy mitigation strategies to ensure a smooth transition. Addressing supply chain vulnerabilities and clinical training gaps prevents adverse events.

Supply Chain Vulnerabilities

Over-reliance on a single geographic manufacturing hub for medical plastics creates severe supply chain vulnerabilities. Natural disasters, geopolitical tensions, or shipping delays can instantly halt the delivery of critical respiratory consumables. Without breathing circuits, elective surgeries cease, and emergency capabilities diminish.

Implementing dual-sourcing strategies mitigates this risk. Procurement teams should qualify at least two independent manufacturers for their primary circuit volume. Furthermore, facilities must evaluate vendor safety stock agreements. Contracts should stipulate that the vendor holds a specific volume of inventory domestically, ensuring rapid deployment during global supply disruptions.

Clinical Adoption and Training

Introducing new equipment carries inherent clinical risks. Staff may experience misconnections, fail to recognize disconnections, or improperly seat carbon dioxide absorbers in new circle systems. Even minor changes in tubing stiffness or connector design can disrupt established clinical workflows.

Mandating comprehensive in-service training mitigates user error. Educators must train staff on visual differentiation, ensuring they can instantly identify the four types of circuits on the supply cart. Utilizing color-coded components reduces cognitive load during high-stress emergencies. Finally, departments must enforce rigorous leak-testing protocols during the morning machine check. Verifying circuit integrity before the patient enters the room remains the most effective safeguard against equipment failure.

A standard leak test protocol includes:

• Closing the APL valve completely.

• Occluding the patient Y-piece securely.

• Pressurizing the circuit to 30 cmH2O using the oxygen flush valve.

• Observing the pressure gauge for at least 10 seconds to ensure no pressure drop occurs.

1. Initiate a clinical trial with shortlisted vendors to evaluate tubing compliance and connector security in a simulated environment.

2. Request sample kits to physically test ISO connector compatibility with your existing anesthesia machines and ventilators.

3. Audit the operational lifecycle costs of disposable versus reusable models based on your facility's specific surgical volume and sterilization capabilities.

4. Establish dual-sourcing agreements to secure critical inventory against unforeseen global supply chain disruptions.

FAQ

Q: What are the four traditional classifications of anesthesia breathing systems?

A: The four traditional classifications are open, semi-open, semi-closed, and closed systems. These categories are defined by the presence or absence of a rebreathing mechanism, the inclusion of a carbon dioxide absorber, and the volume of fresh gas flow required to prevent hypercapnia.

Q: What is the difference between a rebreathing and a non-rebreathing anesthesia circuit?

A: A rebreathing circuit routes exhaled gas through a chemical absorber to remove carbon dioxide, allowing the patient to safely rebreathe the gas. A non-rebreathing circuit lacks an absorber and relies on high fresh gas flows to flush exhaled carbon dioxide out of the system entirely.

Q: How can clinical staff visually differentiate between rebreathing and non-rebreathing circuits?

A: Rebreathing circuits feature large carbon dioxide absorber canisters and distinct unidirectional inspiratory and expiratory valves on the anesthesia machine. Non-rebreathing circuits lack these components, typically consisting of a simpler tubing arrangement connecting directly to a fresh gas outlet and a reservoir bag.

Q: Why are circle systems the most commonly used anesthesia breathing circuits?

A: Circle systems dominate adult anesthesia because they are highly efficient. They conserve patient heat and airway moisture while drastically reducing the consumption of expensive volatile anesthetic gases. This makes them both clinically beneficial for prolonged surgeries and economically efficient.

Q: What are the clinical benefits of using a disposable anesthesia breathing circuit?

A: Disposable circuits eliminate the risk of bacterial and viral cross-contamination between patients. They also remove the need for labor-intensive chemical sterilization and thermal reprocessing, which can degrade reusable tubing and lead to dangerous gas leaks during surgery.

Q: Why is it critical to use a latex-free anesthesia breathing bag?

A: Latex exposure can trigger severe, life-threatening anaphylactic reactions in sensitized patients and healthcare workers. Using latex-free synthetic elastomers ensures patient safety, complies with modern hospital allergy protocols, and provides the necessary elasticity for manual ventilation.
