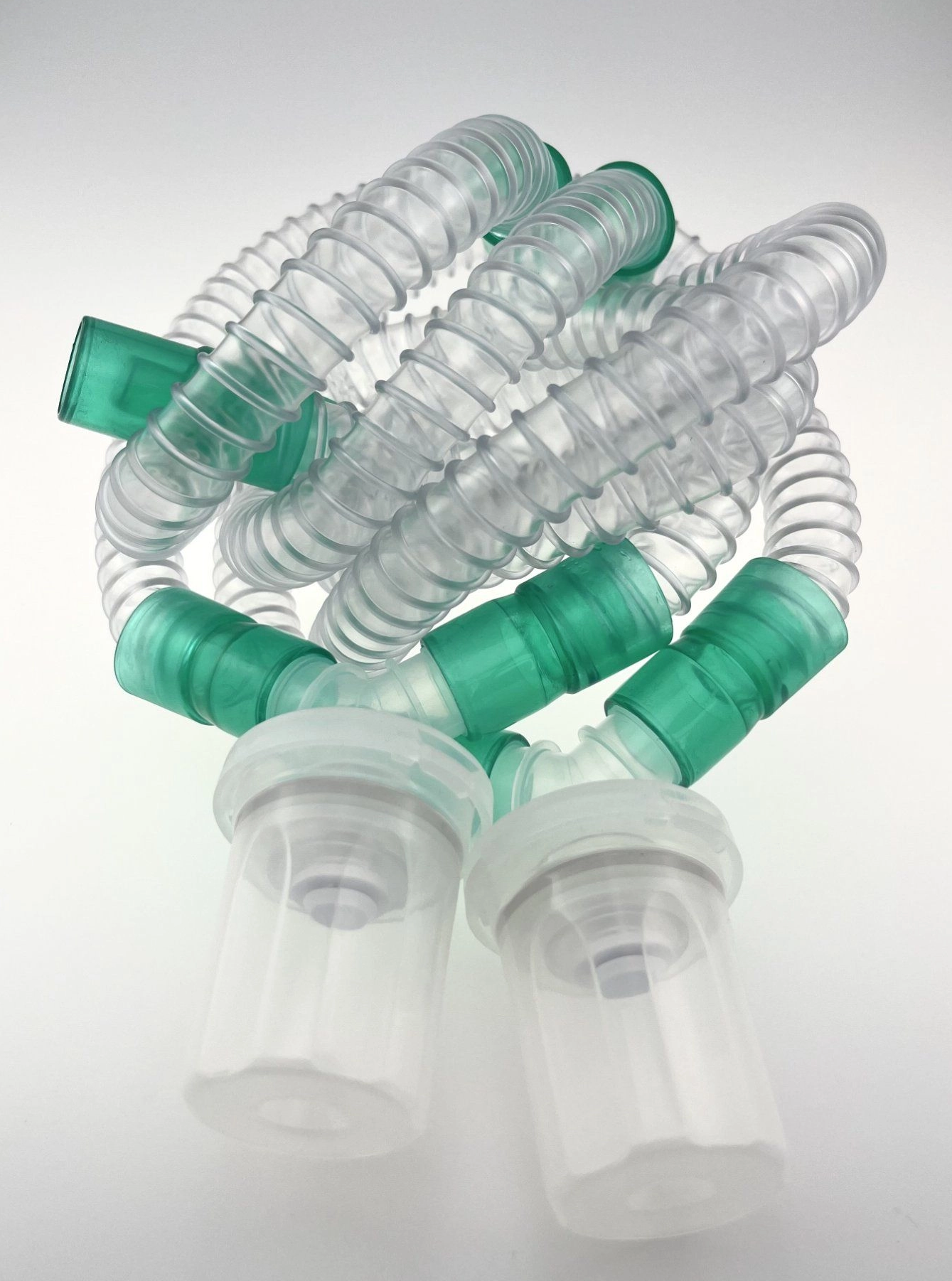

An anesthesia breathing circuit is the physical lifeline in the operating room. It forms the continuous gas pathway connecting a patient’s airway to the anesthesia delivery machine. This setup directly dictates the safety of gas exchange and allows providers to precisely regulate anesthetic depth during surgery. Clinical directors and procurement teams face a constant operational challenge. They must balance strict infection control protocols and patient safety against the logistical demands of managing high-volume supplies. You cannot afford equipment failures when managing an airway. A deep understanding of circuit mechanics, component quality, machine integration, and system types is mandatory. This knowledge helps you evaluate vendors, mitigate clinical risks, and standardize your inventory. We will break down exactly how these systems function, what components matter most, and how to optimize your procurement strategy for maximum safety and efficiency.
Primary Function: The circuit delivers oxygen and anesthetic gases, actively regulates anesthetic depth, and safely removes carbon dioxide through precise pressure and volume control.
System Variations: Circle systems dominate modern operating rooms due to gas conservation and CO2 absorption, whereas Mapleson systems serve specific pediatric or transport needs.
Material Safety is Non-Negotiable: Modern compliance mandates the use of specific materials, such as a latex-free anesthesia breathing bag, to eliminate anaphylactic risks.
Procurement Shift: The industry standard has heavily shifted toward the disposable anesthesia breathing circuit to eliminate cross-contamination risks and reduce sterilization overhead.
Machine Integration: A safe circuit relies on seamless integration with the anesthesia machine's safety features, including disconnect alarms, pressure monitors, and automated leak testing.
A successful breathing circuit must meet strict baseline requirements to function safely in a clinical environment. It requires minimal mechanical dead space to prevent the dangerous rebreathing of unmixed, carbon dioxide-rich gases. It must offer exceptionally low resistance to breathing to reduce patient fatigue during spontaneous ventilation. Absolute leak prevention is mandatory. Any breach in the system compromises the delivery of volatile agents and oxygen, leading to rapid patient destabilization. The system must also prevent unmixed gas pooling. Proper flow dynamics ensure the patient receives the exact concentration of anesthetic dialed in by the provider at the vaporizer.
The circuit manages a continuous, highly controlled flow of fresh gas. This mixture typically includes oxygen, medical air, nitrous oxide, and volatile anesthetics like sevoflurane or desflurane. The gas moves from the anesthesia machine's common gas outlet directly to the patient's airway. Providers manipulate the circuit's volume and fresh gas flow rates to rapidly alter the patient's anesthetic depth. High fresh gas flows (e.g., 5 to 10 liters per minute) wash out exhaled gases quickly. This allows for fast induction at the start of a case or rapid emergence at the end. Low flows (e.g., 1 to 2 liters per minute) conserve expensive volatile agents during the maintenance phase of prolonged surgeries.
The circuit supports both positive pressure ventilation and spontaneous breathing. During positive pressure ventilation, the anesthesia machine's ventilator bellows compress, forcing gas through the inspiratory limb and into the lungs. The circuit tubing must withstand this pressure without expanding excessively. This expansion is known as compliance. High compliance in the tubing absorbs a portion of the tidal volume, reducing the actual volume delivered to the patient. For example, if tubing has a compliance of 3 mL/cmH2O and peak pressure hits 20 cmH2O, you lose 60 mL of volume to the circuit itself. During spontaneous breathing, the patient draws gas directly from the reservoir bag. The circuit must offer minimal resistance to this inspiratory effort to prevent respiratory muscle fatigue.
Preventing hypercapnia is a primary, non-negotiable function of the circuit. Exhaled carbon dioxide must leave the system before the patient takes their next breath. If the patient inhales CO2, respiratory acidosis develops rapidly, leading to cardiac arrhythmias and physiological stress. The circuit design determines exactly how this CO2 is managed and removed. Open systems vent all exhaled gas directly to the atmosphere or scavenging system. Closed and semi-closed systems recycle the gas to improve efficiency.
Chemical CO2 absorption is the standard mechanism for closed and semi-closed systems. Exhaled gas passes through a canister filled with absorbent granules. A chemical reaction traps the carbon dioxide and produces heat and water as byproducts. The scrubbed, CO2-free gas then mixes with incoming fresh gas. The patient safely rebreathes this mixture. This process conserves patient body heat, maintains airway moisture, and drastically reduces the consumption of volatile anesthetics.

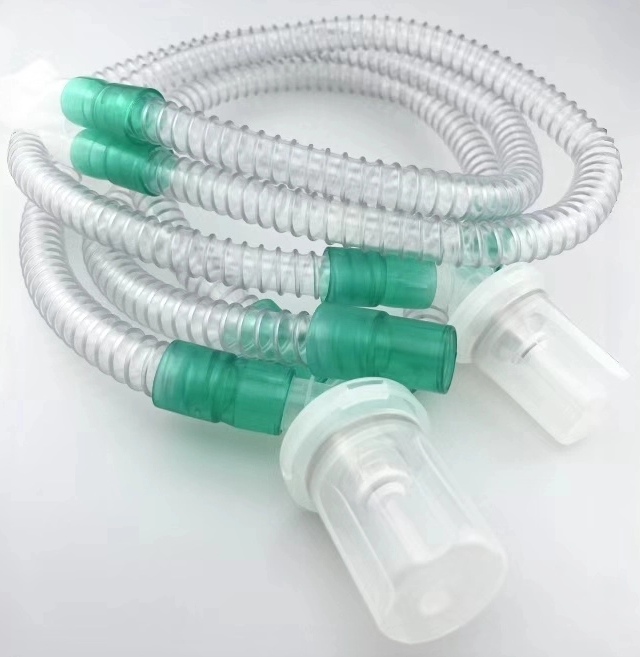

Tubing forms the physical structure of the gas pathway. Dual-limb circuits use separate corrugated tubes for inspiration and expiration, meeting at a Y-piece near the patient. The corrugations provide structural integrity, preventing the tube from kinking or collapsing when draped over IV poles or surgical equipment. They also add flexibility for complex patient positioning. Expandable tubes allow providers to adjust the physical length of the circuit. This helps organize the workspace around the surgical field. However, expanding the tubes increases the internal volume, which alters gas dynamics and increases compliance loss.
Coaxial systems, such as the Bain circuit, place the fresh gas limb concentrically inside the expiratory limb. The warm exhaled gas surrounds the inner tube, warming the incoming fresh gas before it reaches the patient. This design is highly compact and reduces clutter around the head and neck. However, coaxial systems carry a specific risk. If the inner fresh gas tube disconnects or ruptures near the machine end, the entire outer tube becomes mechanical dead space. This leads to massive CO2 rebreathing. Tubing compliance remains a critical evaluation factor across all designs. Stiff, low-compliance tubing ensures accurate tidal volume delivery, which is especially important for pediatric patients or adults with poor lung compliance.

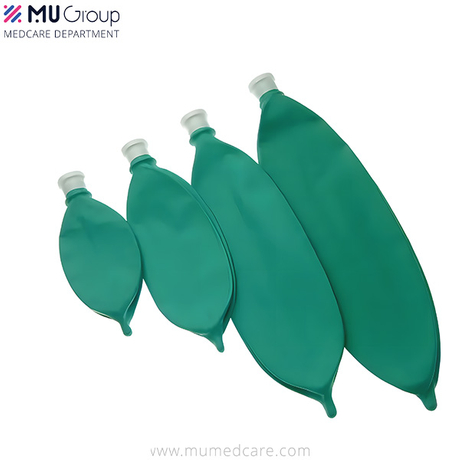

The reservoir bag serves two primary functions in the operating room. It acts as a compliant gas reservoir to meet the patient's peak inspiratory flow demands, which often exceed the continuous fresh gas flow rate provided by the machine. It also provides a direct visual and tactile monitor of spontaneous ventilation. Providers watch the bag inflate and deflate to assess respiratory rate and volume. They also squeeze it manually to deliver breaths during induction or emergencies. Material safety here is heavily regulated. Hospitals now mandate the use of a latex-free anesthesia breathing bag. This eliminates the risk of severe anaphylactic reactions in sensitized patients. Modern synthetic rubbers, such as neoprene or specialized silicones, provide the exact same elasticity and tactile feedback without the allergen risk. Bags come in various sizes, typically ranging from 0.5 liters for neonates to 3.0 liters for large adults.
The mask connects the breathing circuit to the patient's face. It must create an absolute airtight seal for non-invasive induction, pre-oxygenation, and emergency manual ventilation. A PVC anesthesia mask offers several distinct clinical advantages. The transparent material allows providers to immediately monitor the airway for secretions, vomitus, or changes in lip color indicating hypoxia. The anatomical air cushion ensures a tight, atraumatic seal over diverse facial structures. Single-use PVC masks eliminate the hygiene risks and degradation issues associated with reusable silicone masks. They connect to the circuit via a standard 22mm fitting, ensuring universal compatibility.
Valves control the direction and pressure of gas flow within the system. Inspiratory and expiratory valves enforce a strict one-way traffic system in circle circuits. They prevent the complete mixing of fresh and exhaled anesthetic gases. These delicate ceramic or mica discs open with minimal pressure. They must seat perfectly flat to prevent backflow. Moisture from exhaled breath or dust from the CO2 absorbent can cause them to stick open. If an expiratory valve sticks open, the patient will inhale previously exhaled, CO2-rich gas from the expiratory limb.
The Adjustable Pressure-Limiting (APL) valve controls the pressure limit within the circuit. It vents excess gas to the hospital's active scavenging system. During manual ventilation, the provider adjusts the APL valve dynamically. Closing it partially builds enough pressure in the circuit to inflate the lungs. Opening it fully allows the patient to breathe spontaneously without facing expiratory resistance. Precise, smooth APL valve function is required for safe airway management and pressure control.
Medical gases delivered from wall pipelines or cylinders are completely cold and dry. Breathing these unconditioned gases damages the respiratory epithelium, thickens secretions, and causes heat loss. Heat and Moisture Exchangers (HMEs) condition the inspired gas. Placed at the Y-piece, they capture heat and moisture from the patient's exhaled breath. They return this heat and moisture to the patient on the next inspiration. This maintains patient normothermia and preserves normal mucociliary clearance.
Filters protect both the patient and the expensive capital equipment. Viral and bacterial filters sit between the patient and the circuit, or at the inspiratory and expiratory ports of the machine. They trap pathogens, preventing them from contaminating the internal components of the anesthesia machine. High-efficiency particulate air (HEPA) filters offer the highest level of protection, capturing particles as small as 0.3 microns. Many modern setups use a combined HMEF (Heat and Moisture Exchanging Filter) to perform both functions simultaneously.
Soda lime is the most common CO2 absorbent used in modern practice. It consists primarily of calcium hydroxide, water, and small amounts of sodium hydroxide. Exhaled CO2 reacts with the water to form carbonic acid. This acid reacts with the bases to form carbonates, water, and heat. The granules contain a pH-sensitive dye, usually ethyl violet. This dye changes color from white to purple as the absorbent becomes exhausted. Providers must monitor this color change and replace the canister to prevent hypercapnia.
Desiccated absorbents pose severe clinical risks. If the granules dry out completely due to high fresh gas flows left running overnight, they can degrade volatile anesthetics. Sevoflurane degradation produces Compound A, which is known to be nephrotoxic. Desflurane degradation can produce carbon monoxide, leading to unexpected carboxyhemoglobinemia. Modern alternative absorbents eliminate strong bases like sodium hydroxide. This prevents the formation of these toxic byproducts entirely, even when the absorbent is fully desiccated.
The circle system is the undisputed standard in modern operating rooms. It consists of a series of interconnected passages. Gas flows in one continuous direction, enforced by the inspiratory and expiratory unidirectional valves. The patient rebreathes expired gas only after it passes through the CO2 scrubber. This design is highly efficient for adult patients. It conserves expensive volatile anesthetics and retains patient heat and moisture effectively.
From an evaluation standpoint, circle systems offer superior operational efficiency. Low fresh gas flows reduce the overall consumption of anesthetic agents, which directly lowers the environmental impact by reducing greenhouse gas emissions. However, circle systems are physically bulky. They have multiple connection points, which increases the statistical risk of leaks or accidental disconnections. They also have higher internal resistance due to the physical weight of the valves and the densely packed absorbent canister.
Mapleson systems lack CO2 absorbers and unidirectional valves entirely. They rely on high fresh gas flows to physically flush exhaled CO2 out of the circuit and into the scavenging system. This high flow prevents rebreathing. The specific physical arrangement of the tubing, reservoir bag, and APL valve defines the Mapleson classification (A through F). Mapleson D and F (also known as the Jackson-Rees modification) are the most common variants used today.
These systems serve highly specific clinical use cases. They are lightweight, highly portable, and have virtually zero resistance to breathing. This makes them ideal for pediatric and neonatal anesthesia. Small children tire easily when breathing against the mechanical resistance of a standard adult circle system. Mapleson systems are also excellent for patient transport from the OR to the ICU. However, they consume massive amounts of fresh gas and volatile agents. This makes them highly inefficient and environmentally taxing for prolonged adult surgeries.
Feature |
Circle Breathing System |
Mapleson Systems |
|---|---|---|
CO2 Removal Method |
Chemical absorption (Soda Lime) |
High fresh gas flow flushing |
Unidirectional Valves |
Yes (Inspiratory and Expiratory) |
No |
Gas Efficiency |
High (Allows low-flow anesthesia) |
Low (Requires high-flow to prevent rebreathing) |
Breathing Resistance |
Higher (Due to valves and canister) |
Very Low |
Primary Clinical Use |
General adult and older pediatric surgeries |
Neonatal/infant anesthesia, patient transport |
Infection control drives modern hospital procurement decisions. Clinical data strongly supports the use of a disposable anesthesia breathing circuit to prevent healthcare-associated infections (HAIs). Reusable circuits require complex, multi-step decontamination protocols. Any failure in the manual cleaning process leaves biological debris, such as sputum or blood, trapped inside the corrugated tubing. This debris harbors dangerous pathogens like Pseudomonas aeruginosa or MRSA.
Relying solely on bacterial filters with reusable systems presents unacceptable risks. Filters can fail due to manufacturing defects. They can also become saturated with moisture during long cases, which reduces their filtration efficacy and drastically increases breathing resistance. A single-use circuit guarantees a sterile, untouched gas pathway for every single patient. This eliminates the cross-contamination vector entirely and aligns with strict modern hospital epidemiology standards.
Procurement teams must evaluate the operational overhead of circuit management. Reusable systems carry heavy hidden operational burdens. Autoclaving requires expensive sterilization equipment, massive energy consumption, and specialized labor in the sterile processing department. Chemical degradation from repeated thermal disinfection shortens the lifespan of reusable plastics, leading to unexpected mid-case failures. Tracking compliance and usage cycles adds unnecessary administrative burden to clinical staff.
Single-use systems streamline the entire surgical workflow. They arrive sterile and pre-assembled. This drastically reduces operating room turnover times. Staff simply disconnect the used circuit, discard it, and attach a new one in seconds. There is no sorting, manual cleaning, or transporting of contaminated goods through hospital corridors. This efficiency allows facilities to schedule more cases per day. The labor savings and increased case volume easily justify the shift to disposable models.
The shift to disposables introduces ecological trade-offs that facilities must manage. Single-use plastics generate significant medical waste. Hospitals face rising disposal and incineration costs for biohazardous materials. Procurement teams must address this environmental impact when selecting vendors.
Modern vendor initiatives focus heavily on sustainable manufacturing. Many suppliers now use recyclable materials for non-contaminated components of the circuit packaging. They optimize packaging designs to reduce cardboard and plastic waste. Some forward-thinking facilities implement recycling programs for the clean portions of the circuit, provided they were protected by a high-quality HMEF. Balancing strict infection control with environmental stewardship remains a critical procurement challenge.
Breathing circuits must meet strict regulatory standards to ensure they perform safely under pressure. ISO 5367 dictates the performance requirements for breathing tubes. It specifies exact limits for compliance, airflow resistance, and connection security. Procurement teams must verify ISO certification before purchasing any new supply line. Tubes that fail pull tests or crush resistance tests will collapse during surgery, cutting off the patient's oxygen supply.
Material safety extends far beyond latex allergies. Plastics used in medical tubing can leach harmful chemicals into the patient's airway. Sourcing DEHP-free and BPA-free plastics is essential. DEHP is a chemical plasticizer that can disrupt endocrine function, posing specific risks to pediatric and pregnant patients. High-quality circuits use medical-grade, inert polymers. These materials maintain flexibility and structural integrity without compromising patient safety.
The circuit acts as a direct extension of the anesthesia machine. It must seamlessly interface with the machine's internal safety monitors. Low-pressure alarms detect disconnects at the Y-piece or machine ports. High-pressure alarms warn of occlusions, such as a kinked tube or a patient biting the endotracheal tube. Spirometry sensors measure exact tidal volumes. The circuit must transmit pressure and flow data accurately to these sensors without dampening the signal.
Stiff tubing or leaky connections distort this critical data. This triggers false alarms, leading to alarm fatigue, or worse, masks real clinical emergencies. The sampling line for the gas analyzer must connect securely to the circuit's Luer lock port. Any leak here dilutes the gas sample with ambient room air. This results in falsely low end-tidal CO2 readings and inaccurate anesthetic concentration measurements.
Mismatched connectors pose a severe implementation risk in the OR. The industry uses standard 22mm male/female and 15mm tapers. However, slight manufacturing variances between cheap vendors cause major problems. A loose connection leads to catastrophic leaks or accidental extubation when the circuit is moved. A connection that is too tight makes it impossible to change components quickly during an airway emergency.
Rigorous pre-use automated machine checks are mandatory before every case. The anesthesia machine pressurizes the circuit to test for leaks and measure dynamic compliance. If the circuit fails this test, it must be replaced immediately. Standardizing equipment across the facility reduces these compatibility issues and ensures a 100% pass rate during morning machine checks.
Managing diverse anesthesia supplies creates massive inventory bloat. Stocking separate tubes, bags, masks, and filters complicates the ordering process. It also increases the risk of assembly errors in the OR. Rushed staff might attach the wrong filter type or forget a critical component entirely during an emergency setup.
Consolidating supplies mitigates this risk entirely. Purchasing pre-assembled circuit kits streamlines inventory management. A single SKU provides the corrugated tubing, reservoir bag, face mask, HMEF, and gas sampling line. This ensures all components are perfectly compatible out of the box. It guarantees that every setup meets the facility's exact safety standards. It also simplifies supply chain logistics, reduces storage requirements, and prevents stockouts of individual components.
The fundamental mechanics of gas delivery remain constant across all surgical environments. However, the choice of circuit directly impacts patient safety, anesthetic depth control, OR efficiency, and facility overhead. A well-designed circuit minimizes dead space, prevents leaks, and ensures accurate gas delivery. Poor-quality components compromise machine sensors, increase breathing resistance, and elevate the risk of cross-contamination.
For general adult operating rooms, facilities should prioritize disposable circle systems. These systems offer the best balance of gas efficiency, workflow speed, and infection control. Ensure all components, including masks, bags, and filters, meet strict latex-free, DEHP-free, and ISO compatibility standards. Specialized pediatric or transport areas may still require Mapleson systems, but these should be standardized to prevent clinical confusion.
To optimize your anesthesia supply procurement, take the following steps:
Audit your current circuit failure rates, noting any frequent disconnects, sticking valves, or failed automated machine leak tests.
Request pre-assembled sample kits from vendors to conduct physical compatibility testing with your existing anesthesia machines and spirometry sensors.
Review all vendor compliance documentation to verify ISO 5367 adherence and confirm DEHP-free, BPA-free, and latex-free material certifications.
Standardize your inventory by shifting to single-SKU circuit kits to reduce assembly errors and streamline OR turnover times.
A: A circle system uses unidirectional valves and a CO2 absorbent canister to recycle exhaled gas, making it highly efficient for low-flow anesthesia. A Mapleson system lacks these components. It relies entirely on high fresh gas flows to flush out CO2 and prevent rebreathing, making it less efficient but lighter and lower in breathing resistance.
A: Latex exposure can trigger severe, life-threatening anaphylactic reactions in sensitized patients. Modern hospital protocols mandate latex-free materials to eliminate this risk entirely. Synthetic alternatives provide the necessary elasticity and tactile feedback for manual ventilation without the allergenic dangers associated with natural rubber latex.
A: A disposable circuit must be changed after every single patient. Single-use designation means the equipment cannot be safely cleaned or sterilized. Reusing a disposable circuit, even with a new bacterial filter, introduces severe cross-contamination and healthcare-associated infection (HAI) risks.
A: Leaks typically occur at connection points, such as where the tubing meets the machine, the mask, or the Y-piece. Mismatched 22mm/15mm connectors, cracked plastic components, or improperly seated unidirectional valves can also cause pressure drops that trigger low-pressure disconnect alarms on the anesthesia machine.
A: The Adjustable Pressure-Limiting (APL) valve controls the maximum pressure within the circuit during manual or spontaneous ventilation. By adjusting the valve, the provider dictates how much exhaled gas is vented to the scavenging system versus retained in the circuit to build pressure for lung inflation.
A: Mechanical dead space is the volume of the circuit where inhaled and exhaled gases mix without undergoing CO2 removal, typically between the Y-piece and the patient. Excessive dead space leads to the rebreathing of carbon dioxide, which rapidly causes hypercapnia and respiratory acidosis in the patient.
